BUSBAR TRUNKING SYSTEM

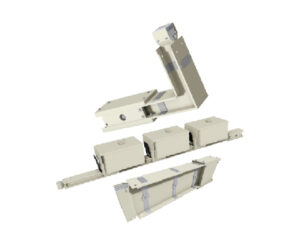

Busbar Trunking System (BBT) is a prefabricated trunk consisting of Copper/ Aluminium busbars and suitable insulating medium. In electrical construction, uses to transporting electrical power to a shorter distance but many utilization points. Though cables can also be used in these areas but the economic impact would be high compared to Busbar Trunking System.

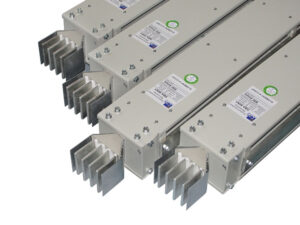

SANDWICH TYPE BBT (EX)

  • PRODUCT IAMGE
  • INTRODUCTION
  • SPECIFICATIONS

We offer Sandwich Bustrunking – SB Series under "Metabar Range" for Low Voltage Power Busbar Solutions from 400A – 6300A. Sandwich Bustrunking finds application in power transfer and distribution solutions replacing cables between:-

  • Transformer to Switchgear Panels
  • Interconnection between Switchgear Panels
  • Diesel Generator to Synchronizing/ Switchgear Panels
  • Rising mains or Vertical distribution
  • Horizontal distribution

The compact system EX line is used for the distribution of power in large industries, for riser end feed units, and for commercial and service sector buildings (banks, hospitals, trade, and business centers, etc.). The ultra-compact dimensions of the EX enhance the short-circuit stress resistance features, reduce the impedance of the circuit by limiting voltage drops and enables the installation of high power electrical systems even in extremely cramped spaces.

  • Complies with international and domestic standards.
  • Complies with IEC61439-1 e IEC61439-6.
  • 4 Conductor (3P+N).
  • 5 Conductor (3P+N+PE)
  • conductor type aluminum and copper

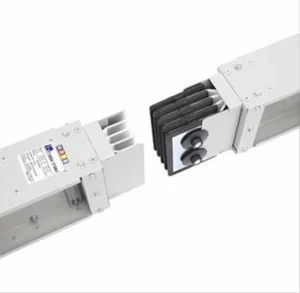

AIR INSULATED TYPE BBT (AX)

  • INTRODUCTION
  • SPECIFICATIONS
  • PRODUCT IAMGE

AX (Medium Rating – Air Insulated) is part of the Energypac range used for the distribution of power in medium-large installations; it is also particularly suitable in rising main applications (trunking systems) within buildings used for the service sector. Very compact size, high short circuit strength, low voltage drop, and good corrosion strength make the AX system suitable for installation in small spaces and difficult environments

  • Complies with international and domestic standards.
  • Complies with IEC61439-1 e IEC61439-6
  • 4 Conductor (3P+N)
  • 5 Conductor (3P+N+PE)
  • 160A to 800A for Aluminum conductors
  • 250A to 1000A for Copper Conductors

LIGHTING TYPE BBT (LX)

  • INTRODUCTION
  • SPECIFICATIONS
  • PRODUCT IAMGE

LX (Low Power – Lighting Busbar) supplied by Energypac is the ideal solution for supplying power to light fittings within the service sector and in most manufacturing industries and wherever it is necessary to hang very heavy accessories. It also can be used for supplying power to three-phase and single-phase devices: industrial refrigerators, lathes, handheld tools, etc.

  • Speed, simplicity, and flexibility when planning and installing the lines
  • Capable of being installed both in false ceilings and below floating floors
  • Complies with international and domestic standards.
  • Complies with IEC61439-1, IEC61439-6
  • Number of Conductor 2 and 4
  • Product Range 25A 40A 63A
  • Degree of protection: IP 55
